Transformer Testing Equipment
Leading Manufacturers, Exporters, Wholesaler and Retailer of High Voltage Transformer, Motor Generator Test & Conversion Set, Portable Transformer Routine Test Set, Portable Transformer Turns Ratio Test Set, Resin Cast Hv Test Transformer, Transformer Routine Test Set and Variable Power Test Auto Transformer from Surat.
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Part Number | TI_HV_230 |
| Winding Material | Copper |
| Primary Voltage | 230/415 V |
| Usage | Industrial |
| Frequency | 50-60 Hz |
| Accuracy Class | 5 |
| Phase | Single, Three |
| Power | 230 / 415 |
| Material | CRGO |
| Cooling Type | Dry Type/Air Cooled, Oil Cooled |
| Secondary Voltage | 1-120KV |
| Mounting Type | Panel Mount / Out door |
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Function | Converts Electrical Power |
| Components | Motor And Generator On A Common Base |
| Design | Rugged, Steel Base Frame |
| Application | Test Labs, Industrial Use |
| Use Case | Voltage And Frequency Conversion |
| Protection | Includes Overload And Overcurrent Protection |
| Cooling | Air-cooled Motor And Generator |
| Mobility | Equipped With Lifting Eyes For Transport |
| Output | Provides Stable, Isolated Power |
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Function | Performs Multiple Routine Tests On Transformers. |
| Tests | Measures Transformer Ratio, Magnetizing Current, And Voltage Gain. |
| Measurements | Multiple Digital Displays For V, A, And P Measurements. |
| Controls | Includes Circuit Breakers And Selector Switches For Test Control. |
| Connections | Equipped With Various Input And Output Sockets. |
| Design | Housed In A Rugged, Portable Case With A Lid. |
| Application | For On-site Commissioning And Maintenance. |
| Power Source | Operates On AC Mains Power |

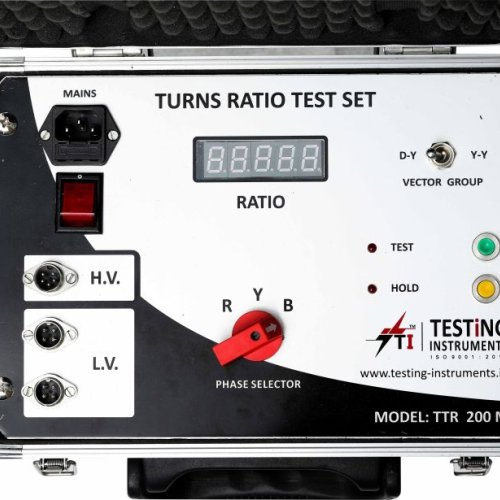

| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Application | For On-site Commissioning And Maintenance. |
| Function | Measures Transformer Turns Ratio. |
| Test Method | Compares High And Low Voltage Windings. |
| Measurements | Digital Ratio Readout. |
| Controls | Phase And Vector Group Selector Switches. |
| Design | Compact, Portable Case With A Carrying Bag. |
| Accessories | Includes A Full Set Of Test Leads And Clamps. |
| Model Number | TTR 200 M |
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Function | Provides High Voltage Output |
| Construction | Resin-cast Insulation |
| Bushing | Shedded Design For Increased Creepage |
| Usage | Used In Test Labs For Insulation Testing |
| Mobility | Mounted On Heavy-duty Wheels |
| Cooling | Oil-filled Tank |
| Performance | High Dielectric Strength |
| Safety | Insulates HV From Test Unit Tank |
| Compliance | Meets High Voltage Safety Standards |

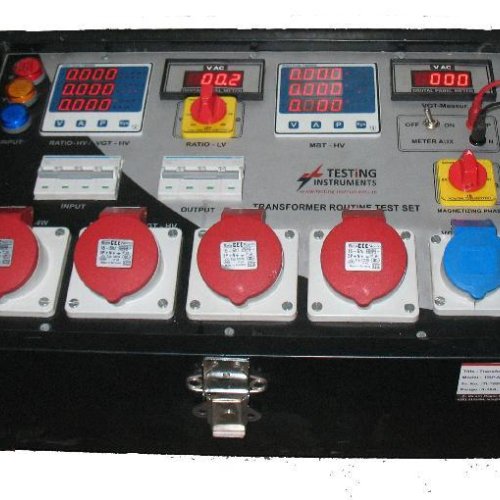

| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| MS | Box |
| Function | Routine Transformer Testing |
| Measurements | V,A,Ratio |
| Controls | Rotary Switches,E-stop |
| Connections | HV,LV,Magnetizing |
| Portability | Portable,Self-contained |
| Safety | Emergency Stop Button |
| Application | QC,Commissioning,Maintenance |
| Model | INST-60,INST-30 |
| Type | Routine Test Set |
| Weight | Light |
| Structure | Compact |
| Functionality | Multiple Function,General-purpose,Easy To Use |
| Product Code | TRM |
| Port | Mumbai |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, Other |
| Delivery Time | 1 WEEK |
| Packaging Details | Wooden Box Packing |
This kind of products are small in volume, light in weight, with compact structure and multiple function, general-purpose and easy to use. Routine Tests of Transformer is mainly for confirming operational performance of individual unit in a production lot. Routine tests are carried out on every unit manufactured as well maintenance.
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Application | Industrial,Test Labs, Industrial Use,Stepping Up Or Stepping Down Voltage |
| Phase | Three Phase |
| Voltage | 415 V |
| Material | CRGO |
| Output Voltage | 230-440 V |
| Frequency | 50-60 Hz |
| Power | AC |
| Packaging Type | Carton |
| Cooling Type | Air, Oil |
| Current | 2-300A |
| Mounting Type | Floor |
| Winding Material | Copper |
| Function | Adjusts Output Voltage |
| Design | Single-winding Construction |
| Cooling | Oil-filled With Radiator Pipes |
| Mobility | Mounted On Heavy-duty Wheels |
| Control | Manual Voltage Tap-changer |
| Construction | Rugged, Durable Tank |
| Connection | HV Output Bushing |
