Injection Test Systems
Leading Manufacturers, Exporters, Wholesaler and Retailer of High Current Injector, Primary Current Injection Kit, Primary Injection & Relays Test System, Primary Injection Circuit Tester, Relay 100X Secondary Injection Test Set, RELAY100A1P Secondary Injection Test Set and Secondary Injection Test Kit from Surat.
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Application | Commissioning And Maintenance,Panel Testing,CT Testing,Cable Testing |

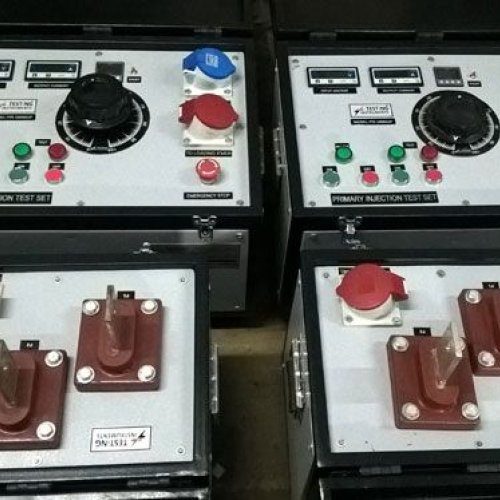

| Type | High Current Injector |
| Function | Injects High Current For Testing |
| Test Application | Circuit Breakers, CTs, Busbars |
| Output | Adjustable High Current (up To KA) |
| Design | Modular, Portable Components |
| Measurements | Digital Ammeter And Timer |
| Controls | Rotary Knob, Push Buttons |
| Safety | Emergency Stop, Overload Protection |
| Terminals | Large High-current Clamps |
| Current Range | 0-1000A |
| Duty Cycle | Continuous |
| Control Type | Digital |
| Customization | Manufactured As Per Customer Requirements |
| Product Code | PTS1000A |
0-1000A, Continuous Duty Cycle. with Digital Control. Also manuafacturing as per customer requirement and technical detail. Its major application for Panel Testing, CT Testing and other protection of panel test, Cable Testing.
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Type | Primary Kit |
| Power | 10KVA |
| Application | Testing |
| Country of Origin | India |
| Model Number | PTS1000A |
| Dimensions | 16 X 16 X 20 |
| MS | Box |
| Product Code | 212 |
| Port | Mumbai |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, Other |
| Delivery Time | 3 day |
| Packaging Details | Wooden Box |

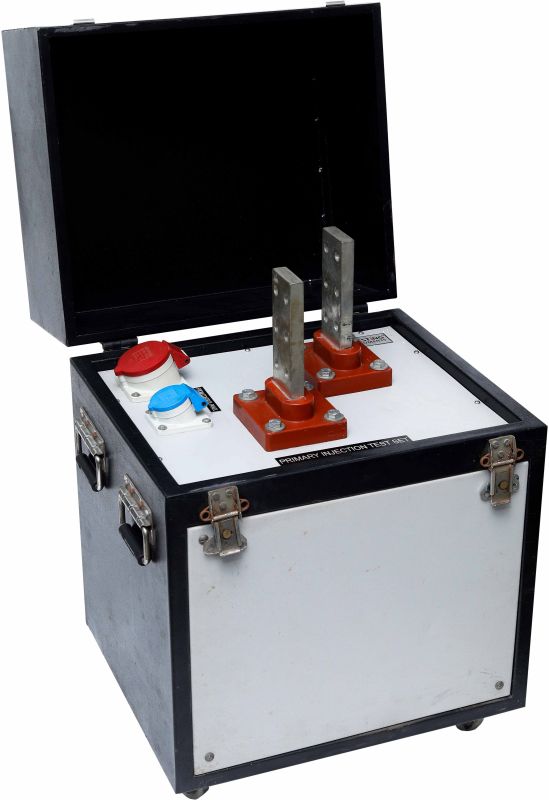

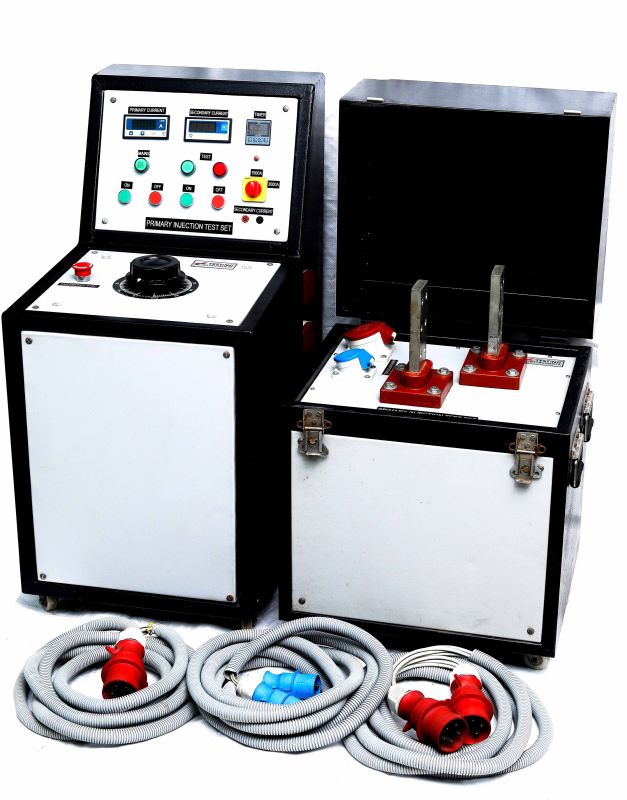

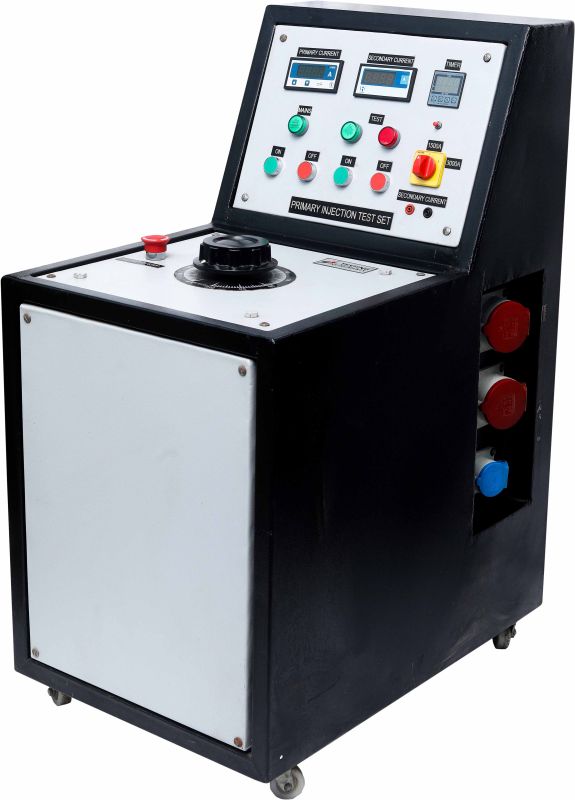

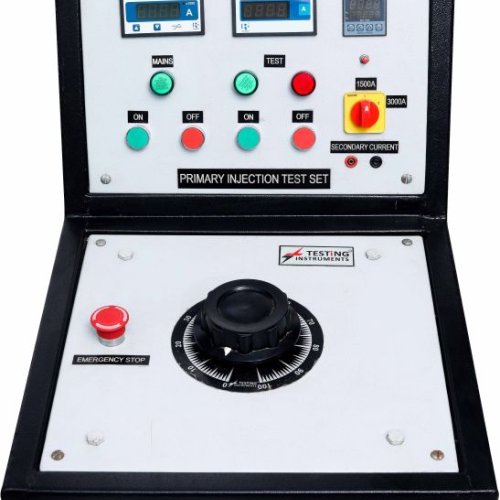

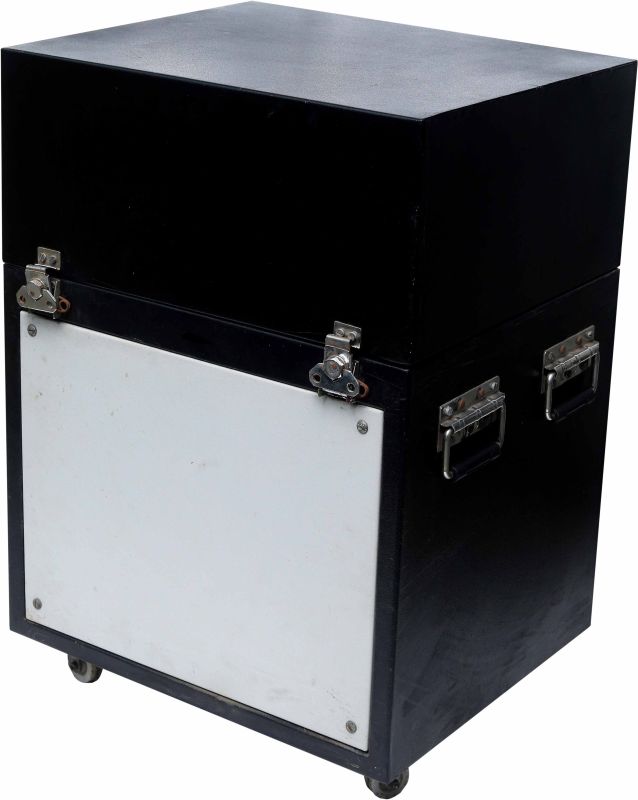

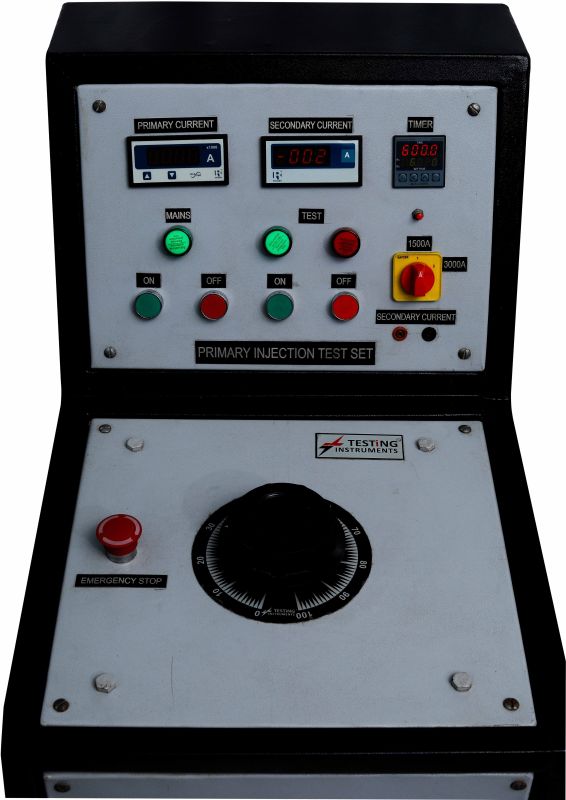

Primary Injection Test Sets Designed using the latest technology, these units combine a variable high current output with the appropriate controls and instrumentation. The test set is ideal for testing Current Transformers (CTs), High Current Panel, thermal, magnetic, and solid-state motor overload relays as well as moulded-case circuit breakers and ground fault trip devices.
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Function | Injects High Test Current |
| Current Output | Adjustable Up To 3000A |
| Measurements | Digital V, A, And Time |
| Test Applications | Circuit Breakers, CTs, Busbars |
| Controls | Large Rotary Adjustment Knob |
| Safety | Emergency Stop Button |
| Design | Portable, Rugged, Modular |
| Application | On-site Commissioning And Testing |
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Function | Injects High Test Current |
| Test Application | Circuit Breakers, CTs, Busbars |
| Output | Adjustable, High Current Output |
| Design | Modular, Portable Components |
| Measurements | Digital Ammeter And Timer |
| Controls | Rotary Current Adjustment Knob |
| Safety | Emergency Stop, Overload Protection |
| Application | Commissioning And Maintenance,Testing Protective Devices |
| Terminals | Large, High-current Output Clamps |

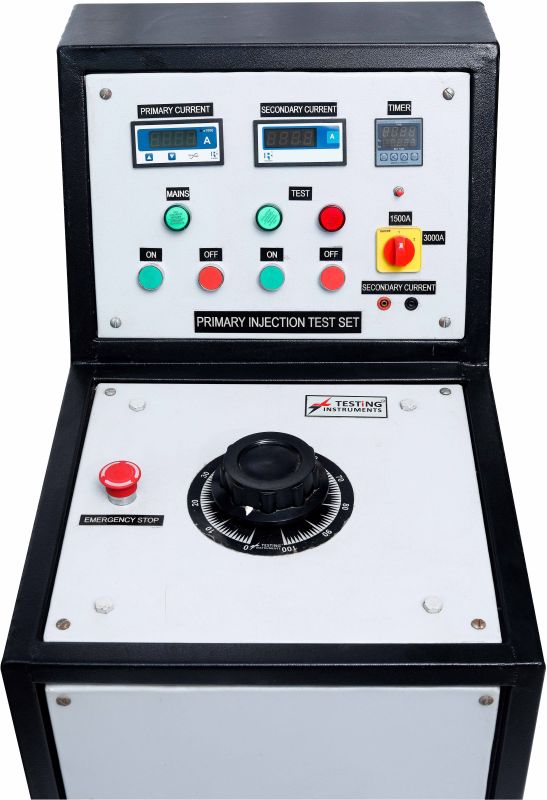

| Type | Primary Injection Test Set |
| Voltage | 230 Volts Single Phase, 415V AC Two Phase |
| Frequency | 50 HZ |
| Power Source | Electricity |
| Compatibility | Relays, Overload Coils, CTs, Bimetal Relays |
| Feature | High Current Output, Inherent Safety |
| Portability | Portable |
Primary Injection Test Sets useable for Protective devices such as relay, overload Coils, Circuit breakers and CTs etc. must be checked regularly to ensure that they are always ready to operate correctly, Routine current injection testing will quickly detect faulty or incorrectly adjusted protection circuits devices & will be possible to prevent serious damage to the system. Primary injection kit is designed to operate on single phase 230 Volts as well Two Phase 415V AC 50 HZ to develop smooth & continuous test current as for loading, calibrating, and testing of CTs, Bimetal Relays and Protection Relays etc. The test set gives high current output at low cost and with inherent safety. Secondary injection testing is undoubtedly valuable, but it does not check all of the components in the system. the heating effect of the primary current will not be present and, in some types of test, this can significantly affect the results obtained.
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Feature | Integrated High-precision Timer. |
| Function | Tests Protective Relay Performance. |
| Current Output | Adjustable Up To 100A And 5A. |
| Voltage Output | Variable AC And DC Outputs. |
| Measurements | Digital Readouts For Volts, Amps, And Time. |
| Design | Portable, Rugged Metal Case. |
| Application | Commissioning And Routine Maintenance. |
| Accessories | Includes Test Leads And Clamps. |

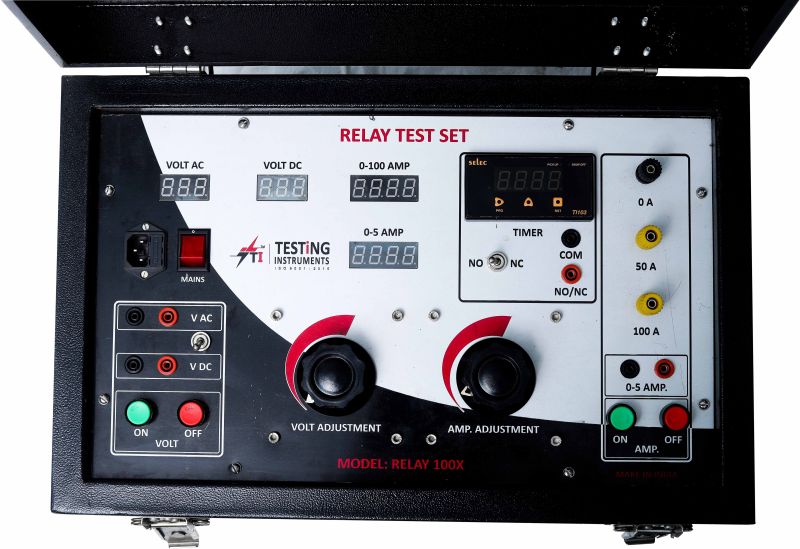

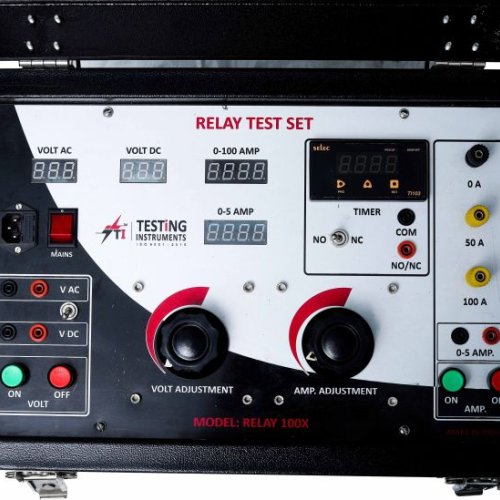

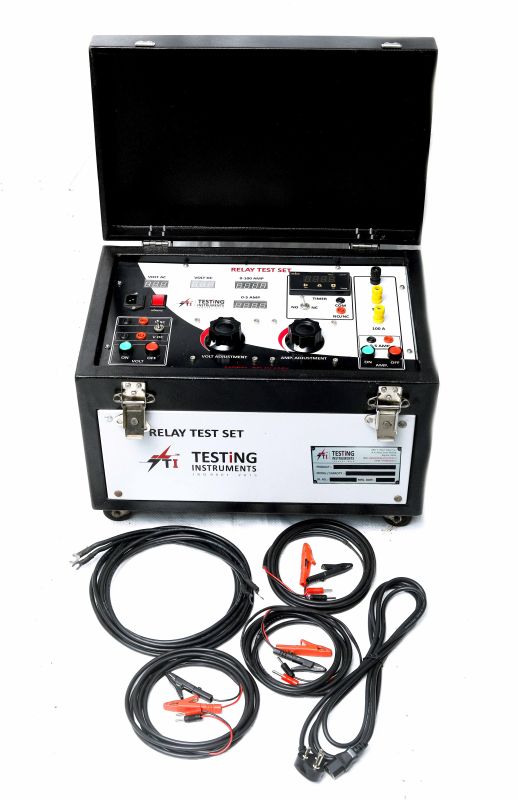

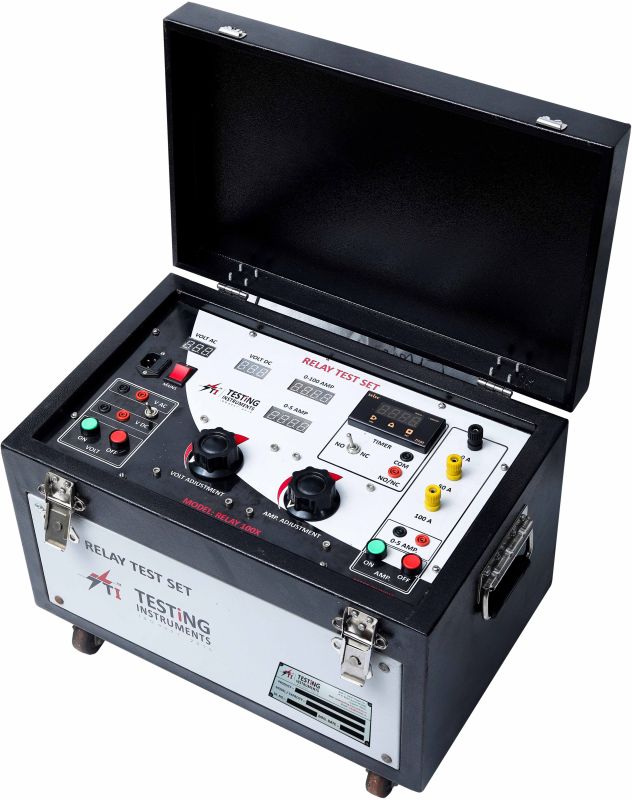

| Model | RELAY 100X |
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Function | Tests Protective Relay Performance |
| Current Output | Adjustable Up To 100A AC/DC |
| Voltage Output | Variable AC/DC And Auxiliary Voltage |
| Measurements | Digital Readouts For A, V, And Time |
| Feature | Integrated High-precision Timer |
| Design | Portable, Rugged Metal Case |
| Application | Commissioning And Maintenance |

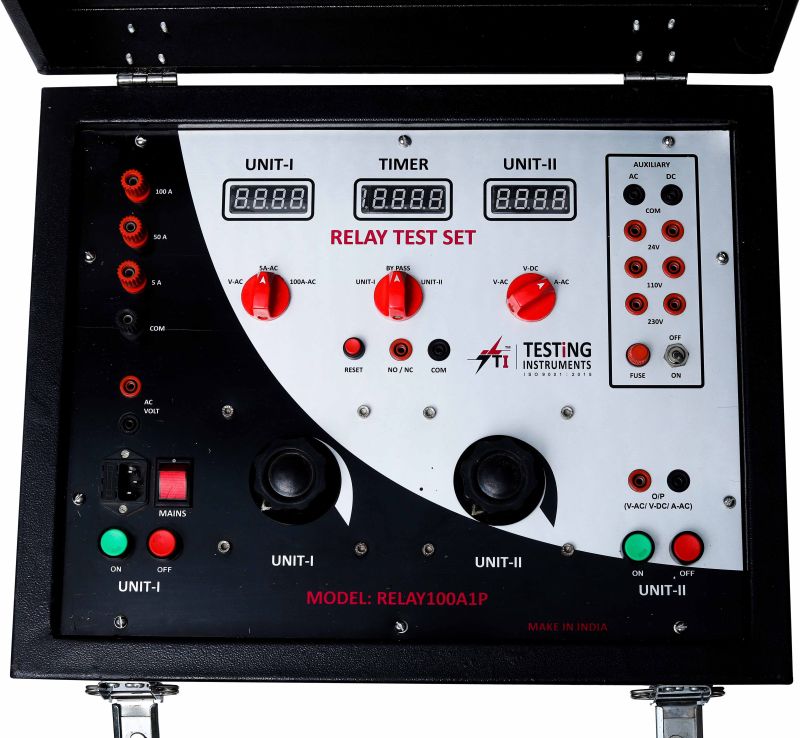

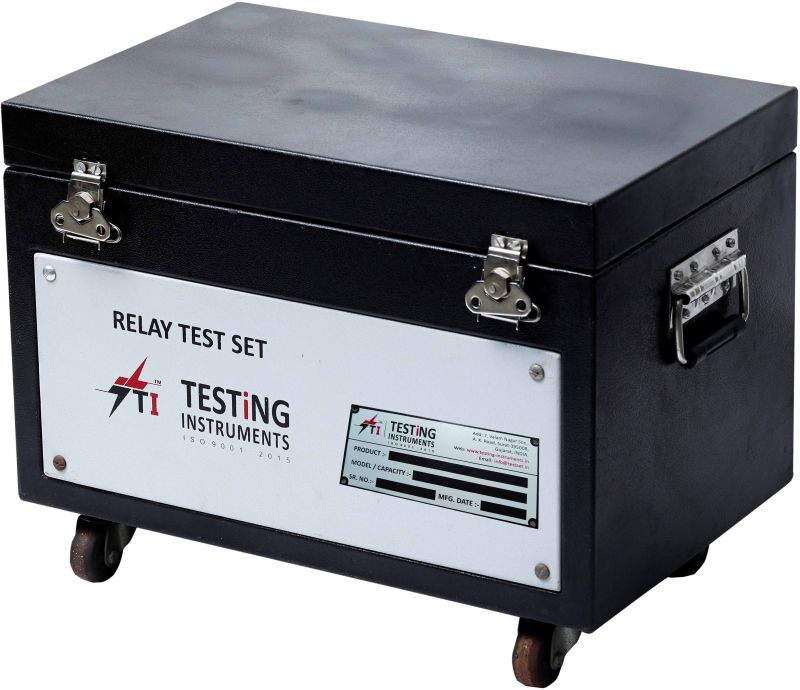

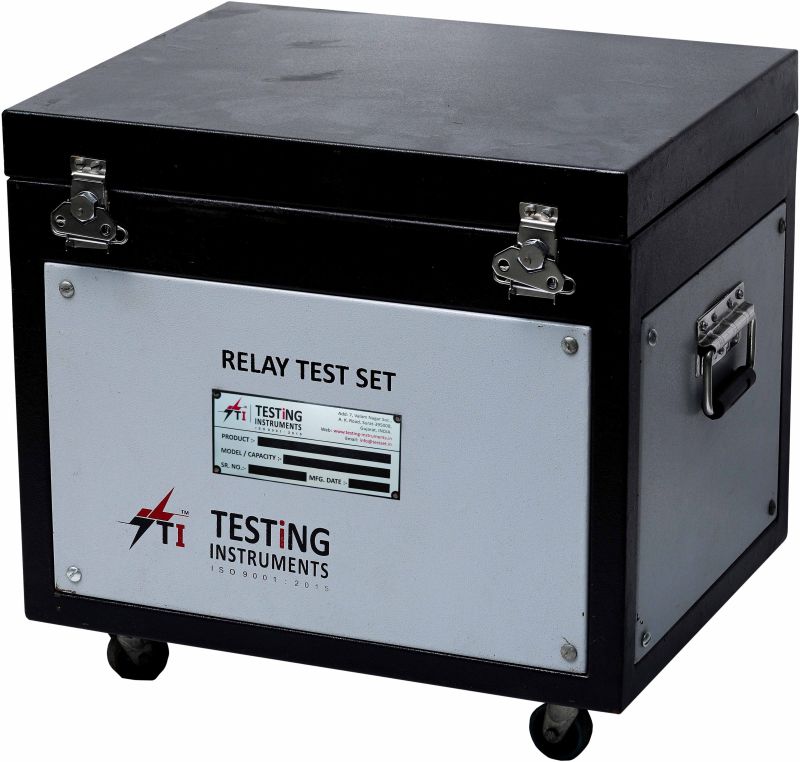

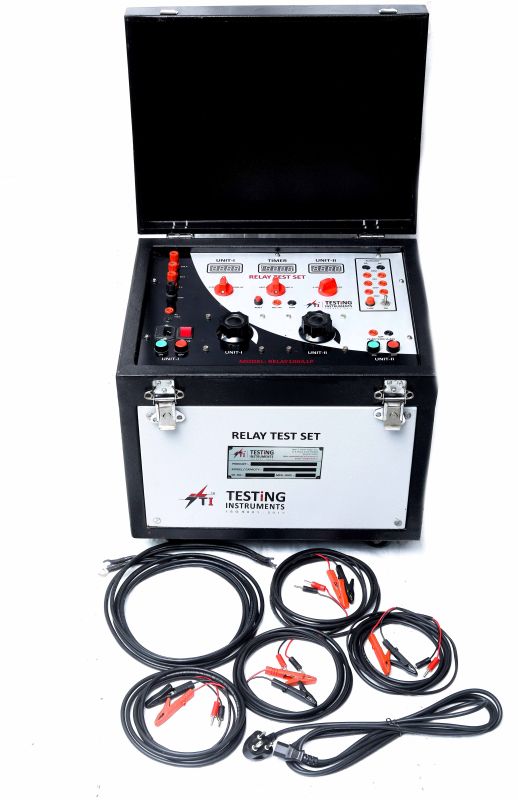

| Model | RELAY100A1P |
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Feature | Integrated Digital Timer |
| Country of Origin | Surat,India |
| Application | Testing,Substation And Industrial Use |
| Model Number | RELAY100X |
| Power | 600VA |
| Dimensions | 18" X 14" X 15" |
| Name | Relay Test Set |
| Function | Tests Protective Relays |
| Method | Secondary Current/voltage Injection |
| Measurement | Digital A, V, And Timer |
| Output | Controllable AC/DC |
| Controls | Manual Adjustment Knobs |
| Portability | Portable, Rugged Case |
| Components | Includes Test Leads And Probes |
| Product Code | RELAY100X |
| Port | Mumbai |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, Other |
| Delivery Time | 2 days |
| Packaging Details | Wooden Box packing |

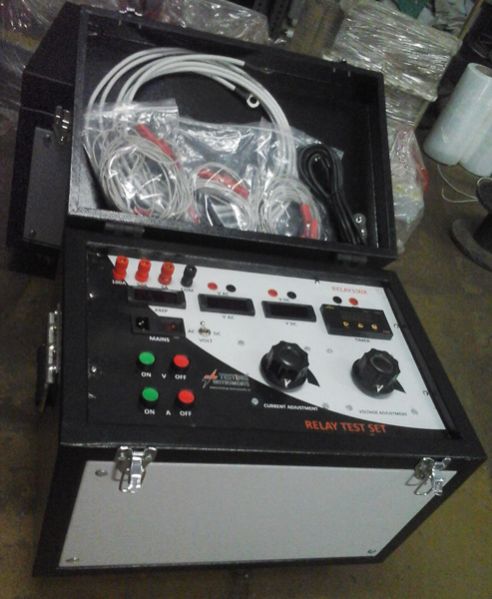

Testing Instruments is one of the leading manufacturing & supplying company of high quality secondary injection kit from India.
